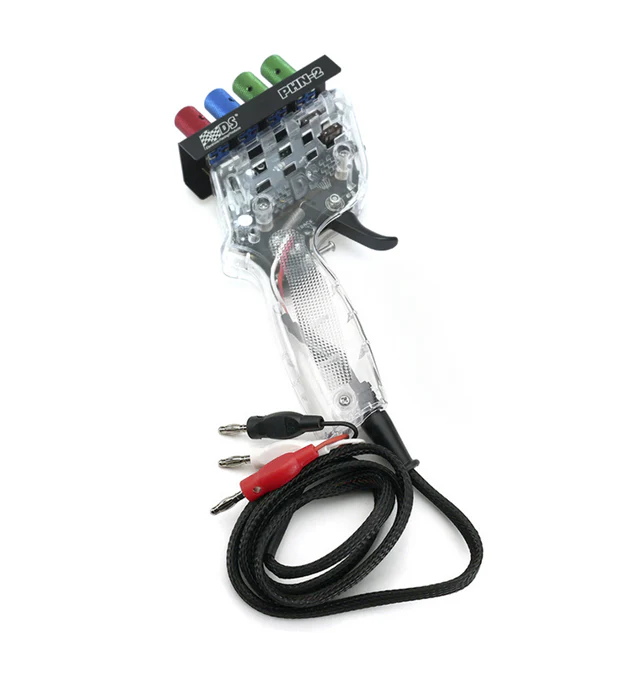

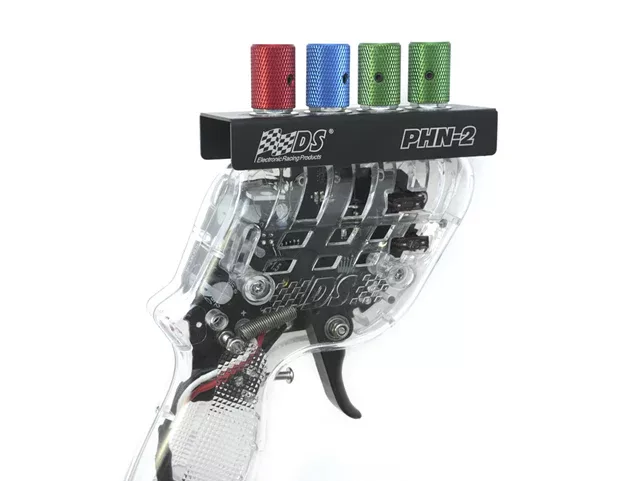

DS-3510 Electronic Controller PHN -02

DS-3510 Electronic Controller PHN -02

Key Features:

• Smooth trigger using magnetic sensors.
• Ball bearings in the trigger mechanism.

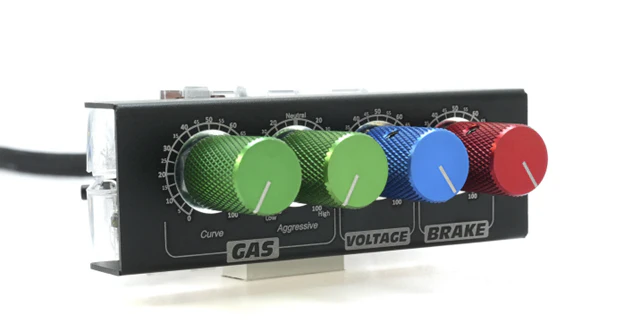

• Dual sensitivity adjustment potentiometers:
  • Base power curve adjustment
  • Aggressiveness adjustment of the power curve (to smooth or sharpen the curve)
• Ajustable potentiometer, for dynamic braking adjustment.
• Side "emergency brake" button (cuts all communication with the track, stopping the car as quickly as possible).
• Power curve selector for 1/32 and 1/24 scale cars.
• Voltage selector FULL or Adjustable - (FULL - full voltage delivery / Adjustable allows you to tune your power, ideal for technical tracks).
• Includes a digital voltage display so you can see your power trim. From aprox 8.5 volts to 12.5 volts ( depends on track power supply output).
• Flexible cable with protective sleeve.
• Includes 4mm banana plugs.
• Operating voltage range: 8V to a maximum of 22V.
