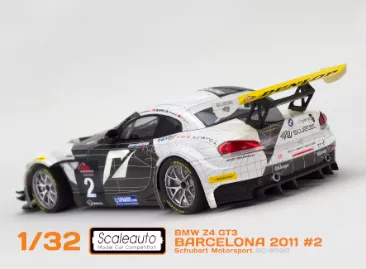

SC-6020 1:32 scale BMW Z4 GT3 #2, Schubert Motorsport Slotcar

SC-6020 1:32 scale BMW Z4 GT3 #2, Schubert Motorsport Slotcar

1st O/A 24h Barcelona 2011

Stock parts list:

Chassis      SC-6615 RT3 Medium Wheelbase

Motor   SC-0008B 20,000rpm & 216 g/cm torque @ 12 volts

Motor pod   SC-6522  .5mm offset RT3

Guide  SC-1621

Axle f/r   SC-1216  53mm x 3/32"

Wheels rear    SC-4052a  17.5 x 8.5mm

Spur gear   SC-1147  37t / 18.5mm dia

Pinion  SC-1012 12t / 7.5mm dia

To set the attitude of the car body we recommend  SC-5110  screw M2x3mm. The four adjustment points are indicated by white circles in the photo below.

At present we do recommend these screws to replace the four motorpod mounting screws:   SICH54b & SICH54
